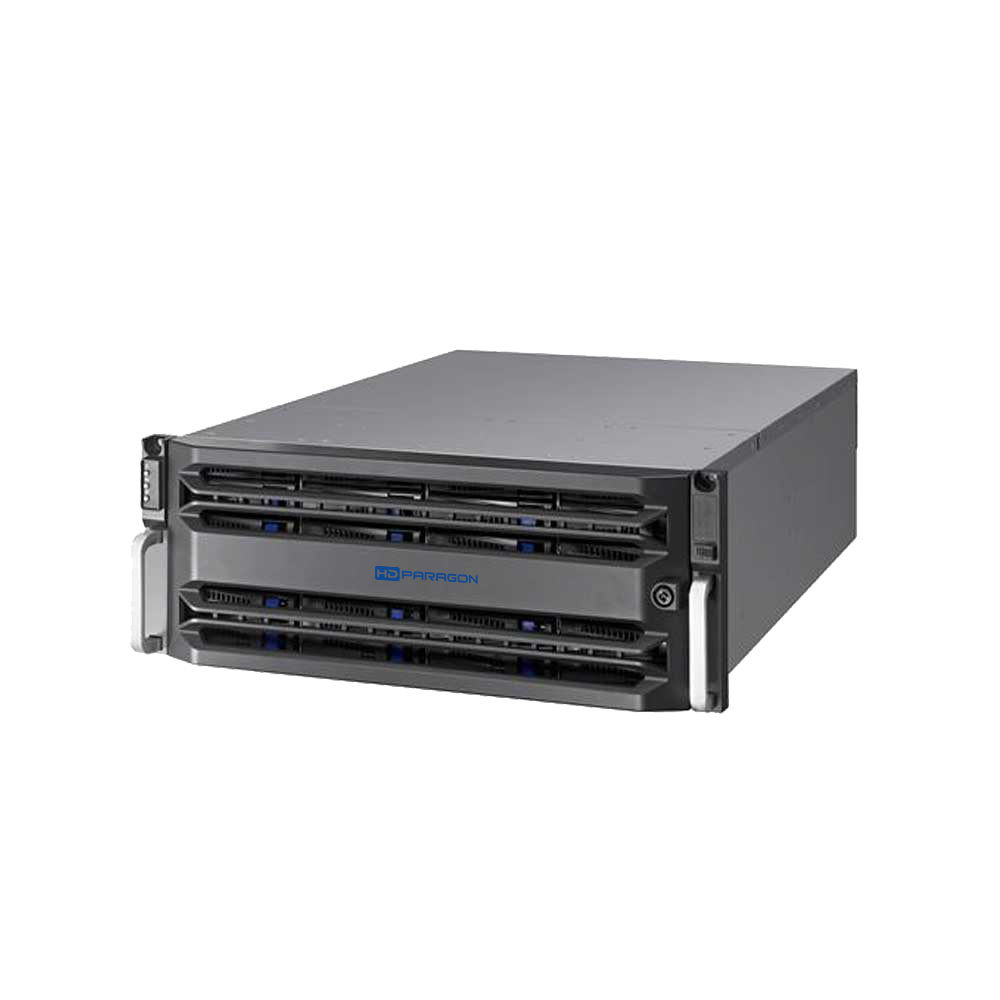

HDS-S1016R/E

Hybrid SAN

Economical and Stable Hardware Platform
● Modular and no-cable design and SBB 2.0 structure.
● 64-bit multi-core processor.
● 4 GB high-speed cache.
● Four 1000M network interfaces.
● 12G SAS high-speed transmission channel.
● Redundant design for key modules.
HDD Detection and Repair/RAID Optimization
● Detection before operation.
● Detection in operation.
● Fault reparation.
● RAID 0, 1, 3, 5, 6, 10, 50, and VRAID.
● Global and local hot spare.
● Quick RAID building.
● Capability of cascading up to two storage enclosures behind a single SAS port.
Advanced Data Protection
● Synchronous backup of key information in system disk and HDD.
● RAID-based tamper-proof data technology.
● Auto data synchronization between devices.
Energy Efficient
● CPU load balance
● Auto fan tuning
● HDD sleeping
User-Friendly UI
● Quick configuration.
● Various alarm management.
● SADP protocol supported.
● SNMP supported.
Surveillance-Specialized Stream Media Direct Storage (Direct Streaming Mode)
● Space pre-allocation strategy.
● Direct storage for video and picture streams.
● Supports direct IP camera/DVR/NVR streaming and recording.
● Support H264,H264+,H265,H265+.
● Support N+1.
● Supports camera access through RTSP, ONVIF, and PSIA protocol.
● Supports alarm/scheduled/manual recording.
● Automatic network replenishment (ANR), timely uploading, and video loss alarm.
● Lock key videos.
● VRAID data protection.
● Supports both Direct Streaming Mode and IPSAN Mode.
● Search, play, and download videos by video type or video time.
Model
Model: HDS-S1016R/E
Performance
Direct Streaming Mode:video(2Mpbs)+Picture: 320-ch recording + playback
IPSAN: 180-ch recording + playback
Controller
Processor: One-controller (64-bit multi-core processor)
Cache: 4 GB ( extendable to 32 GB )
HDD
HDD Slot: 16
Interface/Capacity: SATA/1TB,2TB,3TB,4TB,6TB,8TB
Hot-swapping: Supported
RAID: RAID0,1,3,5,6,10,50.VRAID,JBOD,Hot-spare
Interfaces
Alarm interface: 1
Data network interface: 3, 1000M Ethernet interface
Management network interface: 1, 1000M Ethernet interface
MiniSAS interface: Supported
COM: 1
USB3.0: 2
VAG: None
HDMI: 2
Network
Protocol: iSCSI,RTSP,ONVIF,PSIA
General
Power supply: Gold-metal redundant power supply
Comsumption ( with HDDS ): Working: ≤308W ( 967BTU with 16 HDDs)
Rated: ≤550W
Environment Temperature: Working: +5°C to +40°C
Storing:-20°C to +70°C
Environment humidity: Working: 20% to 80%RH (non-condensing/frozen)
Storing:5% to 90%RH (non-condensing/frozen)
Chassis: 3U (19-inch height)
Dimensions (W x H x D): 440 x 132 x 495 mm (17.3 x 5.2 x 19.5 in)
Weight (without HDDs): ≤ 20 Kg (44.1 lb)
