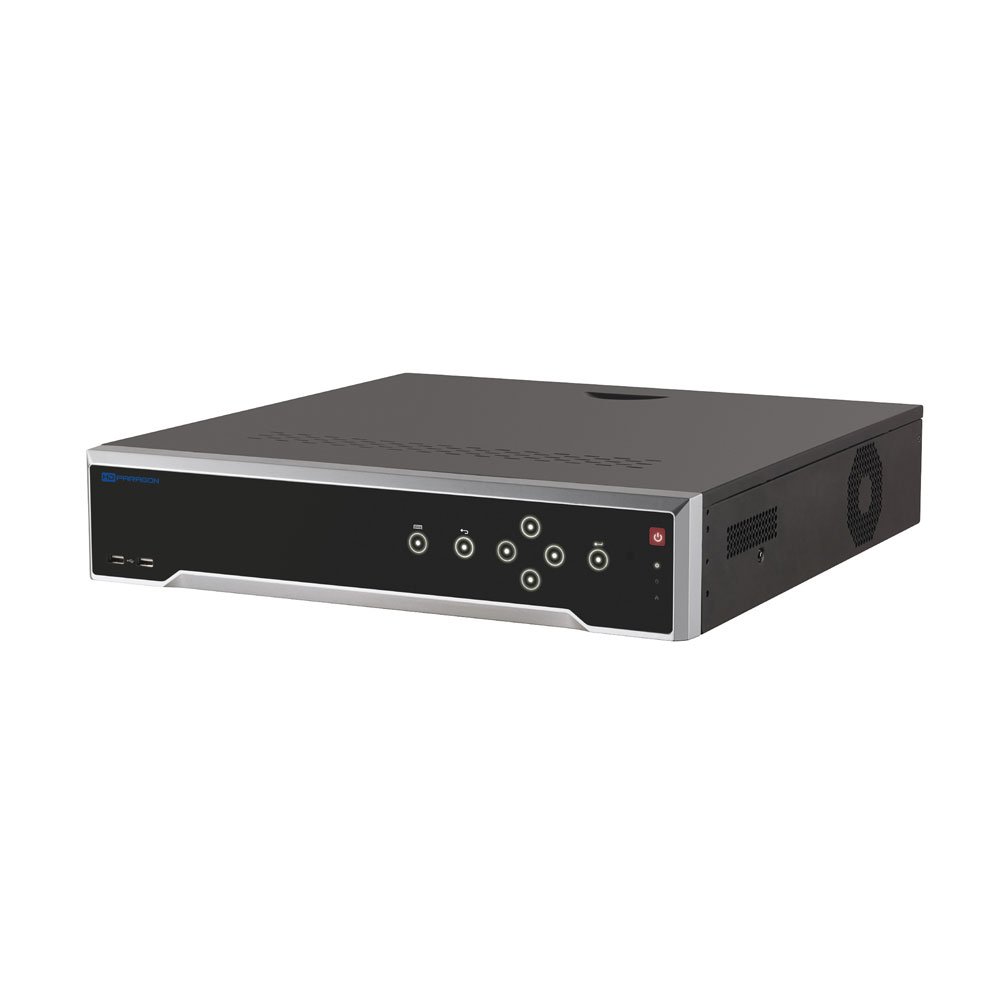

HDS-VT7732I-4K/4HD
32-ch 1.5U 4K NVR
Up to 32 channel IP cameras can be connected
H.265+ compression effectively reduces the storage space and costs by up to 75%
4 HDDs for continuous video recording
HDMI and VGA independent outputs provided
Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
Price : 30.100.000vnđ
H.265+ compression effectively reduces the storage space and costs by up to 75%
4 HDDs for continuous video recording
HDMI and VGA independent outputs provided
Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
Price : 30.100.000vnđ
- Video And Audio
- IP Video Input32-ch
- HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA OutputHDMI,VGA
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Incoming Bandwidth256 Mbps 256 Mbps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Decoding Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
- Synchronous Playback16-ch
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Network
- Network ProtocolTCP/IP, DHCP,Guardingvision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Remote Connection128
- Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- PoE
- InterfaceN/A
- RAID
- RAID TypeNo
- Auxiliary Interface
- SATA4
- CapacityUp to 14TB , 1 eSATA interface
- Serial Interface1 RS-485 (half-duplex), 1 RS-232
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/4
- General
- Power Supply100 to 240 VAC
- Consumption≤20 W
- Working Temperature-10 to +55º C (+14 to +131º F)
- Working Humidity10 to 90 %
- Chassis19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
- Weight≤ 5 kg (11 lb)
