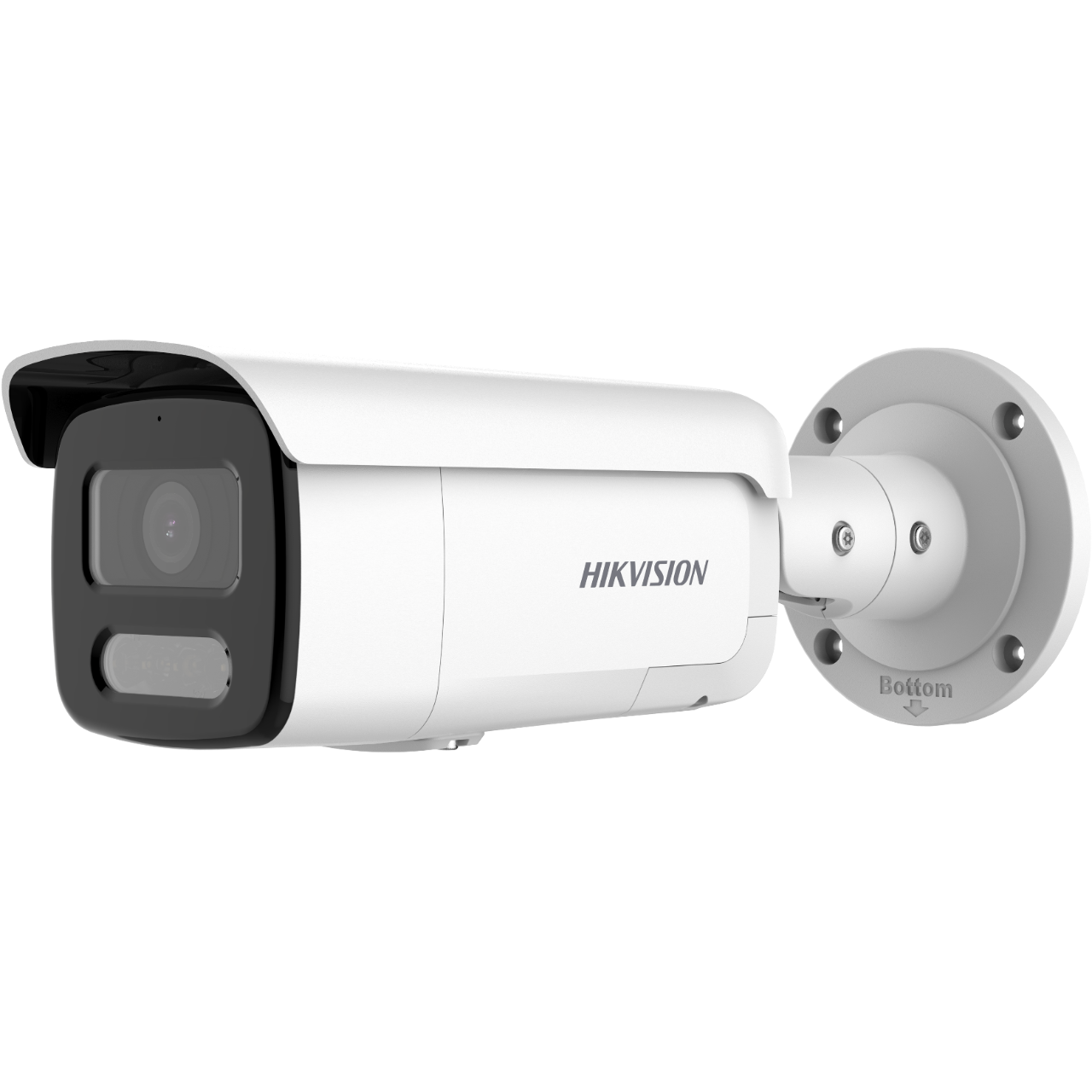

DS-2CD2T26G2-ISU/SL

2 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera

High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provides real-time security via built-in two-way audio
Water and dust resistant (IP67)

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Máy Ảnh
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 129°

4 mm, horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 102°

6 mm, horizontal FOV: 55°, vertical FOV: 29°, diagonal FOV: 65°
Lens MountM12
Iris TypeFixed
ApertureF1.4
Depth Of Field
2.8 mm: 1.1 m to ∞

4 mm: 1.2 m to ∞

6mm: 3 m to ∞

DORI
DORI
2.8 mm: D: 44 m, O: 17 m, R: 9 m, I: 4 m

4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m

6 mm: D: 87 m, O: 34 m, R: 17 m, I: 9 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 60 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream

Audio
Audio TypeMono sound
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
Smooth StreamingYes
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10+, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters SwitchYes
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC,HLC,3D DNR
Privacy MaskYes

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-In SpeakerMax. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Built-In MicrophoneYes
Alarm1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Reset KeyYes

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),

Scene change detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Deep Learning Function
Face CaptureYes

General
Power
12 VDC ± 25%, 0.88 A, max. 10.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W
MaterialFront cover: metal, back cover: metal
Dimension289 mm × 93.1 mm × 91.2 mm (11.4" × 3.7" × 3.6")
Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Approx. 1195 g (2.6 lb.)
With Package WeightApprox. 1704 g (3.8 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter
Flashing LightYes

Approval
EMC
FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013
