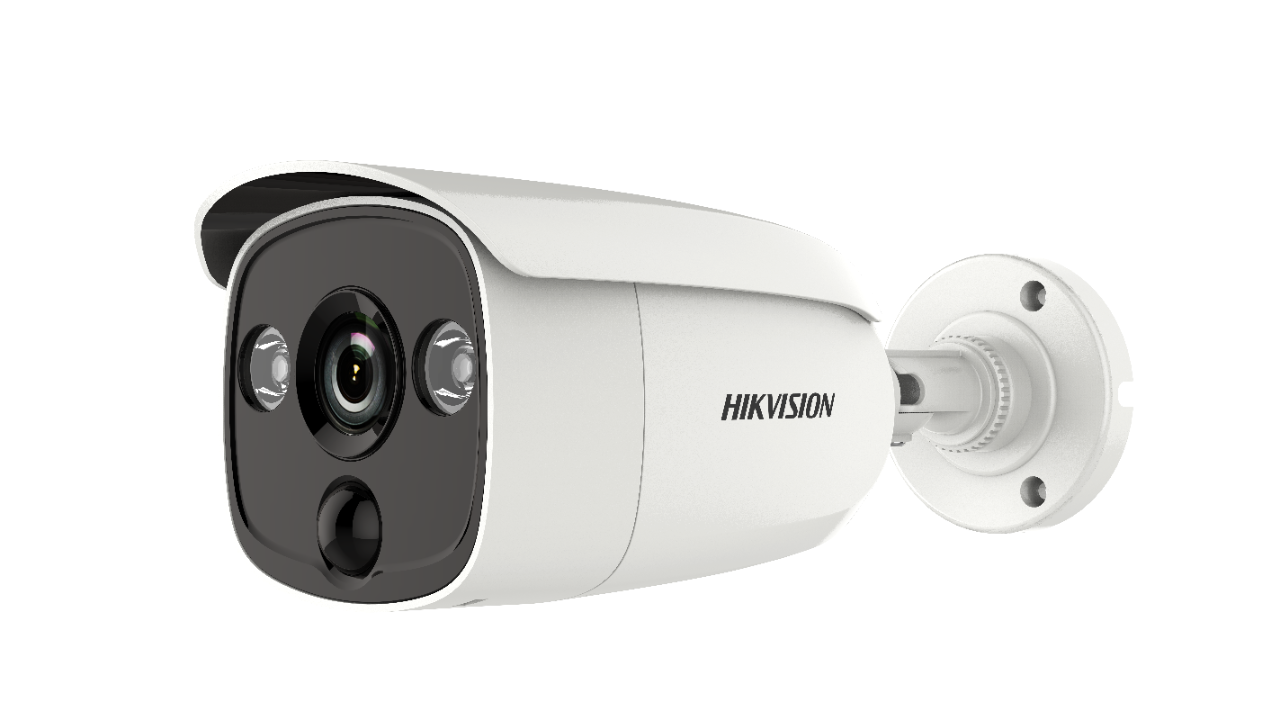

DS-2CE12D0T-PIRL

2 MP PIR Fixed Bullet Camera

2 MP PIR bullet camera
PIR detection and strobe light alarm to warn off intruders in real time
EXIR 2.0: advanced infrared technology with 20 m IR distance
Water and dust resistant (IP67)

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor2.0 megapixel progressive scan CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV103° (2.8 mm), 82.2° (3.6 mm)
Lens MountM12

Image SettingsBrightness, Contrast, Sharpness, Saturation, DNR, Mirror
Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Image EnhancementBLC
White BalanceAuto/Manual
White LightAuto/Off
AGCLow/middle/high

Supplement Detection(PIR)
PIR RangeAngle: 110°, Range:11 m

Interface
Video OutputTVI only
AlarmYes

General
MaterialFront cover: Metal,Main body: Plastic,Bracket: Metal
Dimension88.6 mm × 81.3 mm × 224.7 mm (3.49" × 3.20" × 8.85" )
Approx. 430 g (0.95 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
LanguageEnglish, Chinese
Power Supply12 VDC ± 25%
ConsumptionMax. 4.5 W
IR RangeUp to 20 m
White Light RangeUp to 20 m
