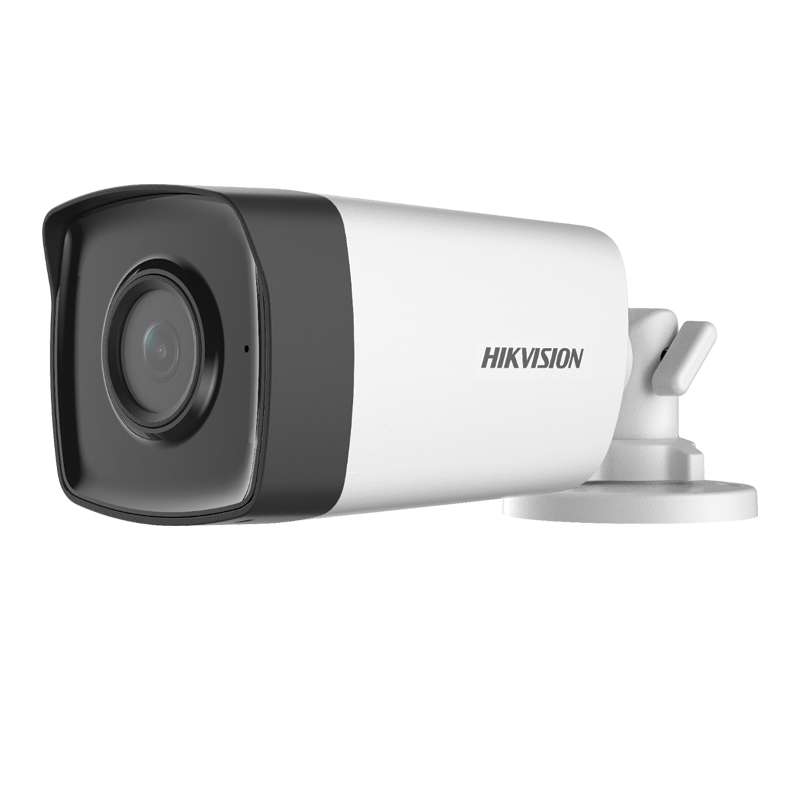

DS-2CE17D0T-IT3FS

2 MP Audio Camera

High quality imaging with 2 MP, 1920 × 1080 resolution
2.8 mm, 3.6 mm, 6 mm fixed focal lens
Up to 40 m IR distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)
High quality audio with audio over coaxial cable, built-in mic

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal SystemPAL/NTSC
Frame Rate
TVI: 1080p @ 25 fps/30 fps

CVI: 1080p @ 25 fps/30 fps

AHD: 1080p @ 25 fps/30 fps

CVBS: PAL/NTSC
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Slow ShutterMax. 16 times
Lens MountM12
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°

3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness;Smart IR;Sharpness
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR;BLC;HLC;Global
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
Noise Reduction2D DNR
LanguageEnglish

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
Built-In MicrophoneYes

General
Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
Power Supply12 VDC ± 25%,
ConsumptionMax. 4.2 W
MaterialFront cover: Metal, Main body: Plastic
IR RangeUp to 40 m
CommunicationHIKVISION-C
Dimension78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
Approx. 328 g (0.72 lb.)
