DS-2CE70DF3T-MF

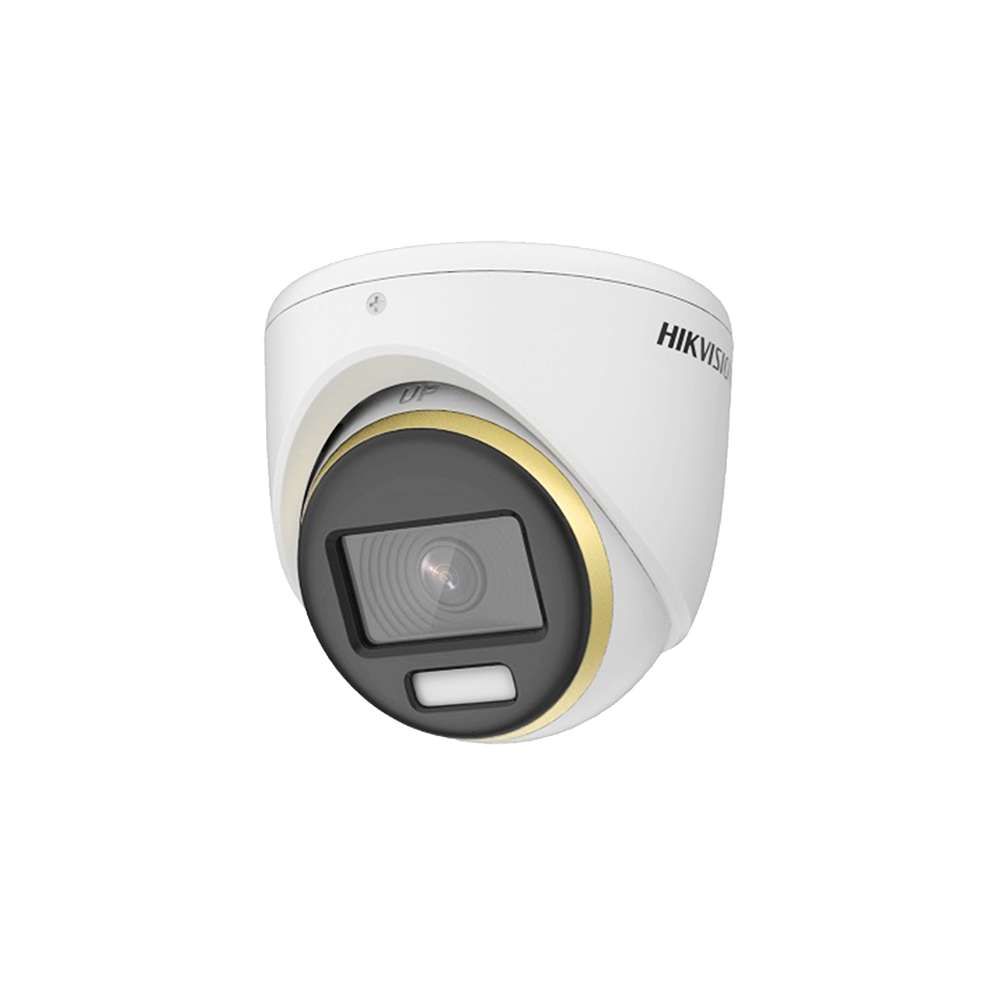

2 MP ColorVu Fixed Turret Camera

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm, 6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Specification
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Resolution1920 (H) × 1080 (V)
Frame RateTVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC
Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Slow ShutterMax. 16 times
Lens2.8 mm, 3.6 mm, 6 mm Fixed Lens
Field Of View2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116° 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91° 6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°
Lens MountM12
Light AlarmFlashing Light Alarm (White Light);Solid Light Alarm (White Light)
Day & NightColor
WDR (Wide Dynamic Range)≥130 dB
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Menu
White LightAuto/Off
Image ModeSTD/HIGH-SAT/HIGHLIGHT
AGCYes
Day/Night ModeColor
White BalanceAuto/Manual
AE (Auto Exposure) ModeWDR;BLC;HLC;Global;HLS
Privacy Mask4 programmable privacy masks
Motion Detection4 programmable motion areas
Noise Reduction3D DNR/2D DNR
LanguageEnglish
FunctionDefective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
Lighting ModeWhite Light

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 2.9 W
Protection LevelIP67
MaterialMetal
White Light RangeUp to 20 m
CommunicationHIKVISION-C
DimensionΦ 85.1 mm × 77.62 mm (Φ 3.35" × 3.05")
WeightApprox. 311.5 g (0.69 lb.)
