HDS-KH6310-WL/SE

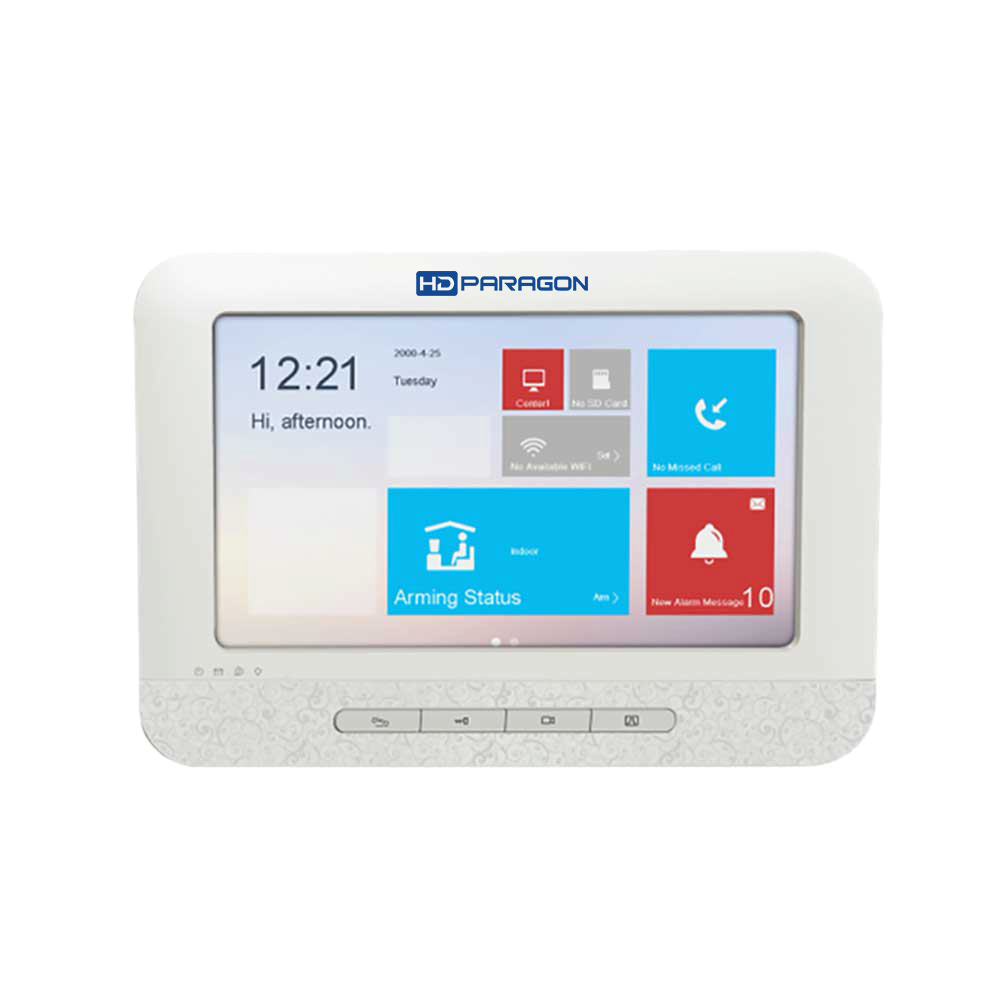

Indoor Station with 7-inch Touch Screen

 Hands-free audiovisual communication with the door
station and the master station in the intercom system
 Panic call supported
 2-ch zone alarm supported
 Supports monitoring door stations and external cameras
 Remote unlocking via the client software or the app
 High-performance embedded SOC processor

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

System Parameters
Processor:		High-Performance Embedded SOC Processor
Operation System:		Embedded Linux Operation System
Memory:		256M

Display Parameters
Display Screen:		7-Inch Colorful TFT LCD
Display Resolution:		800 × 480
Operation Method:		Capacitive Touch Screen, Physical Button
Operation interface:		Flattened UI Operation Interface

Audio Parameters
Audio Input:		Built-in Omnidirectional Microphone
Audio Output:		Built-in Loudspeaker
Audio Compression Standard:		G.711 U
Audio Compression Rate:		64 Kbps
Audio Quality:		Noise Suppression and Echo Cancellation

Network Parameters
Ethernet:		10/100 Mbps Self-Adaptive Ethernet
Network Protocol:		TCP/IP, RTSP

Alarm Parameters
Alarm Input:		2-ch Alarm Input Sensor

Device Interfaces
Network Interface:		1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
RS-485:		1 RS-485 Half-Duplex Port

General
Power Supply:		12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)
Power Consumption:		≤10 W
Certification:		FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Working Temperature:		-10° C to + 55° C (14° F to 131° F)
Working Humidity:		10% to 90%
Dimensions(L × W × H):		217 mm × 142 mm × 26 mm (8.5" × 5.6" × 1.0")
