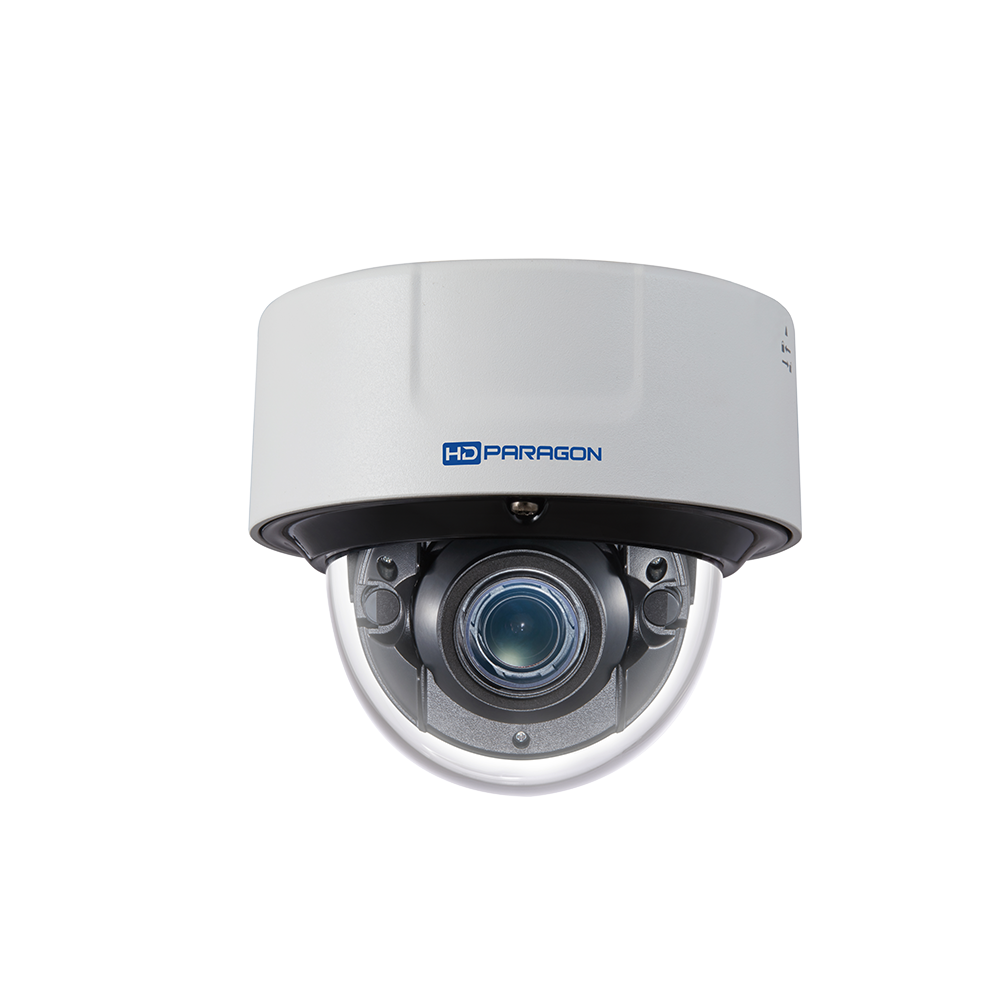

HDS-5126VF-IRAZ3

2MP VF Dome Network Camera

1/1.8” Progressive Scan CMOS
1920 × 1080 @ 60fps
Color: 0.002 Lux @ (F1.2, AGC ON)
H.265, H.265+, H.264+, H.264
140dB WDR
3D DNR
IR up to 30m
6 behavior analyses, 3 exception detections, face detection, and counting
5 defined streams and up to 5 custom streams supported
On-board storage up to 256 GB
IK10

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1/1.8" Progressive Scan CMOS
Signal System:		PAL/NTSC
Min. Illumination:		Color: 0.002 Lux @ (F1.2, AGC ON) 0 Lux with IR
Shutter time:		1 s to 1/100,000 s
Slow shutter:		Yes
Lens:		2.8 to 12 mm
Lens Mount:		Integrated
Adjustment Range:		Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night:		IR Cut Filter
Wide Dynamic Range:		140dB
Focus:		Auto, semi-auto, manual

Compression Standard
Video Compression:		H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:		Baseline Profile/Main Profile/High Profile
Video bit rate:		32Kbps~16Mbps
Audio Compression:		G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:		64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Dual Stream:		Yes
Triple Streams:		Yes

Max. Image Resolution:		1920 x 1080
Frame Rate:		50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:		50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream:		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement:		BLC, HLC, Defog, EIS
Image Settings:		Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:		Support
HLC:		Support
Smart Defog:		Support
EIS:		Support
3D DNR:		Support
Picture Overlay:		LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch:		Auto/Schedule/Day/Night/Triggered by Alarm In

Network
Network Storage:		Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:		Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function:		One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility:		ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Intelligent
Behavior analysis:		Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Interface
Communication Interface:		1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface (half duplex, HDPARAGON, Pelco-P, Pelco-D, self-adaptive)
Audio:		1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
Alarm:		1-ch input, 1-ch output (up to 24 VDC 1A or 110 VAC 500 mA)
Alarm Input:		1
Alarm Output:		1
Video Output:		1Vp-p composite output (75 Ω/CVBS)
On-board storage:		Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button:		Yes

Audio
Environment Noise Filtering:		Support
Audio Sampling Rate:		8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Smart Feature-set
Behavior Analysis:		Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection:		Cross a pre-defined virtual line
Intrusion Detection:		Enter and loiter in a pre-defined virtual region
Region Entrance:		Enter a pre-defined virtual region from the outside place
Region Exiting:		Exit from a pre-defined virtual region
Unattended Baggage:		Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:		Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:		Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
Recognition:		Face Detection
Statistics:		Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)

General
IR Range:		Up to 30m
Operation Condition:		-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Operating Conditions:		-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply:		12 VDC ± 20%, two-core terminal block PoE (802.3at, class 3): 42.5 V to 57 V
Power Consumption:		12 VDC ± 20%: 0.7 A, max. 8 W PoE (802.3af, class 3): 36 V to 57 V): 0.3 A to 0.2 A
Impact Protection:		IK10
IR Range:		Up to 30m
Dimensions:		Camera: Φ140.5 × 122.6 mm (Φ5.5″ × 4.8″) With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
Weight:		Camera: 900 g (1.98 lb.) With package: 1250 g (2.76 lb.)
